10" industrial monitors

frame-tv >> 10" industrial monitors

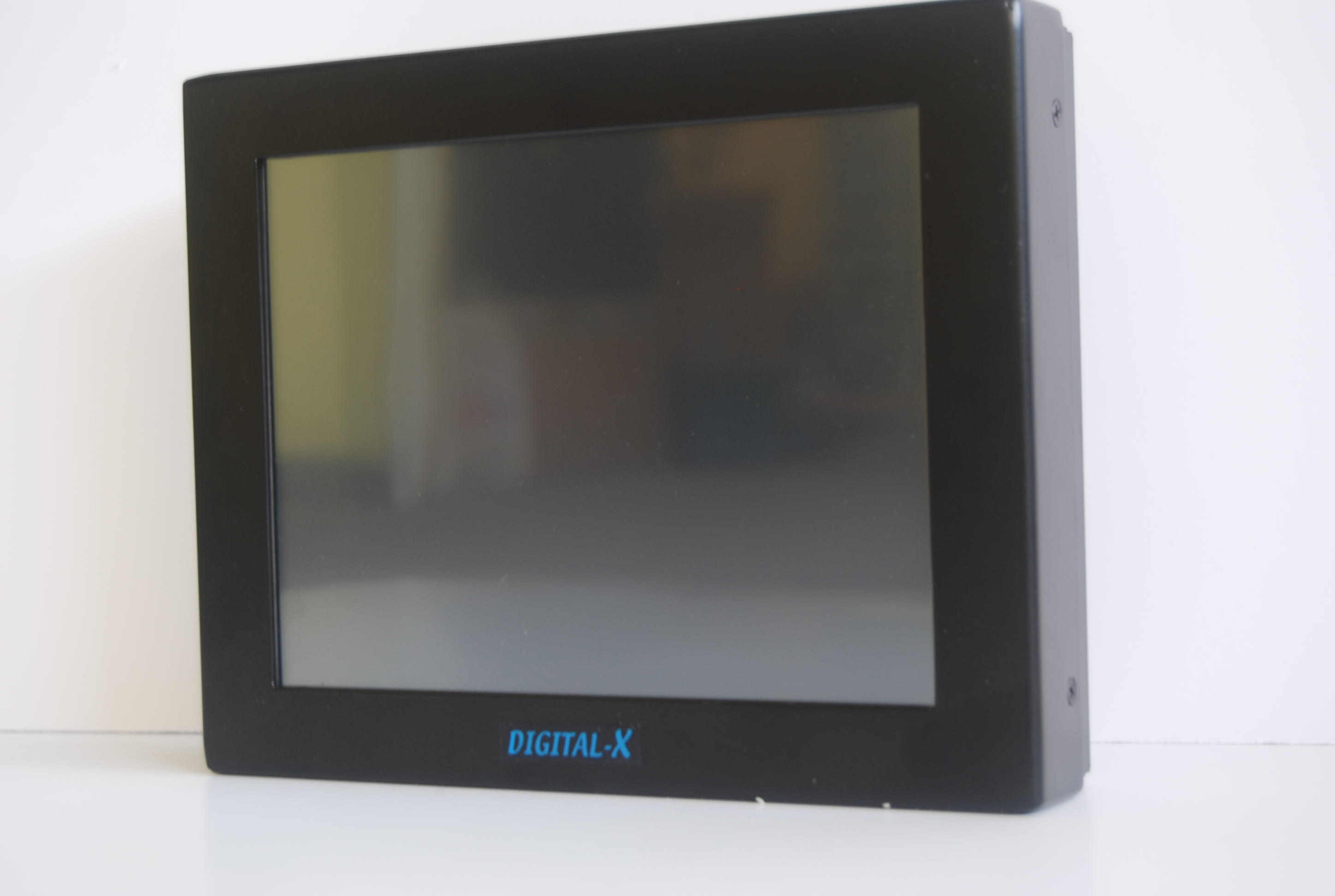

10.4" INDUSTRIAL LCD MONITOR MODEL -- DX-104HVX-01

Main
 Features
BOE Premium Technology LCD Panel for Industrial Use Model – HV-104X01-100
NEW A grade premium panel . { we never use , recycle , pulled or used LCD panels }
High Brigtness - 350 cd/m2
Super high Contrast ratio - 500:1
Viewing Angles –176 / 176
Native resolution – 1024x768
Clean front bezel without buttons . { buttons on the rear side }
VESA Mount ---- 75x75 mm
Life Time Enhanced : 50,000 hrs
Super wide viewing angles technology
Elegant Case Design made from Aluminum , high quality painted
Custom design upon customers request OEM ODM

Detailed features


Model Name DX-104-HVX-01
Module Type 10.4
Dispaly Area (mm) 246.0 X 184.5
Dot Pitch 0.20 X 0.20
Pixel Format 1024x768
Color 16.M
Luminance 350 cd/m2
Contrast Ratio 500:1
Input Signal Analog RGB – D Type 15pin connector +
AV + S.VIDEO Inputs.
Compatibility of PC VGA, SVGA , XGA
Viewing Angles { U/DL/R } 89/89/89/89
Number of CCFL 2
MTBF 50,000 hrs
Power Input 12V 1.5A ,
Power Consumption Max 25W
Touchscreen SURFACE ACCOUSTIC WAVE { SAW 6mm } option
5 WIRES RESISTIVE - option .
Front sealed Tempered glass 6mm - option
